Plug-in-Play Cable Not Included, Connect with 8 speakers
Note: Special cables are not included. Because different cars require different cables.
Before ordering, please check your car radio connector and choose the appropriate power cables.
If you are unsure, please contact us
10 Minutes With Plug in Play

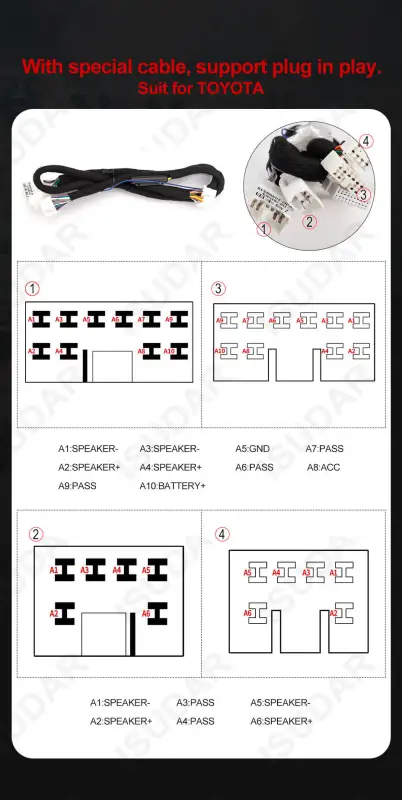

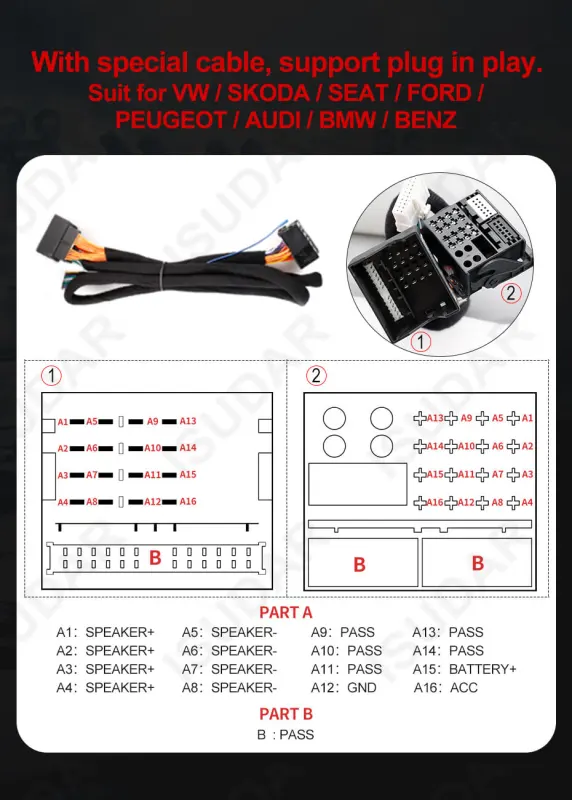

ISO cables for suitable models can be selected, No need to break original cable.
Active 3rd Order Frequency Divider
The device has 8 channels high and low level output, you can update your sound system to 3rd Order frequency divider.
Separated the tweeter, midrange and bass In the front part, and each channel is individually tuned to enhance the sense of layering and space.
8*High Level Output
8*RCA output
8-Channel DSP Adjust
Remote Control(Optional)
6*High Level input
2*AUX/RCA input
Optical Fiber input
Bluetooth Audio input
U Disk input
Normal Installation and Updated
The package includes the special cable for 4 channels, you can connect with your radio ISO connector, the 4 door speakers will work well.
For other 4 output channels, you can connect with external speakers, such as Center Speaker, Surround speaker and so on.
Just a simple installation, you can upgrade the sound of the whole car.
Part 1: Hareware installation
1. Take out radio, disconnect original connector
2. Both ends on DSP cable, one connect to radio, another connect to car socket
3. Connect white plug to DSP box
4. Lay out all cables, then take DSP box into car glove box
Part 2: Software Installation and Adjustment
1. Installation ISUDAR app into mobile and turn on, then play car music;
2. Click "Auto EQ" in the setting of App, accord to the tip and take your mobile in a suitable place;
3. Wait "Auto adjust" end, click " Save" to save
Intelligent and Visual- DSP Amplifier
Different as traditional amplifiers, DSP amplifier not just can amplify sound signal, and it can support visual adjustment, becoming more intelligent.
Without complex traditional knobs, every driver with DSP amplifier can be a professional tuner to enjoy the most desired auditory feast anytime and anywhere.
Original: Blurred details and weak bass.
DSP: Clean treble and powerful bass, real Hifi level
Original: No or difficult to adjust,
DSP: User-friendly operation, easy to adjust
User Friendly Operation
Support Android Mobile Control and Iphone, you can download"Car DSP" app from applestore.
Support Windows PC Control
Channels Response Delay
Support delay adjustment of each channel
Control the reached time for sound, improve surround sound
Filters Adjustment Supporting
Frequency High pass and Low pass
Slope adjustment
Better layering of sound
31-Band EQ Ajustment
Each channel can be adjusted directly
The curves and values are displayed intuitively
Support EQ automatic adjustment
Bluetooth & U-Disk Music Playback
Built-in Bluetooth, mobile audio input directly
U-Disk plug-in-play.
Support Remote Control
You can choose the remote control, it supports to choose the Mode, Back, Previous, Next, Pause/Play.
Make the driving more safer.

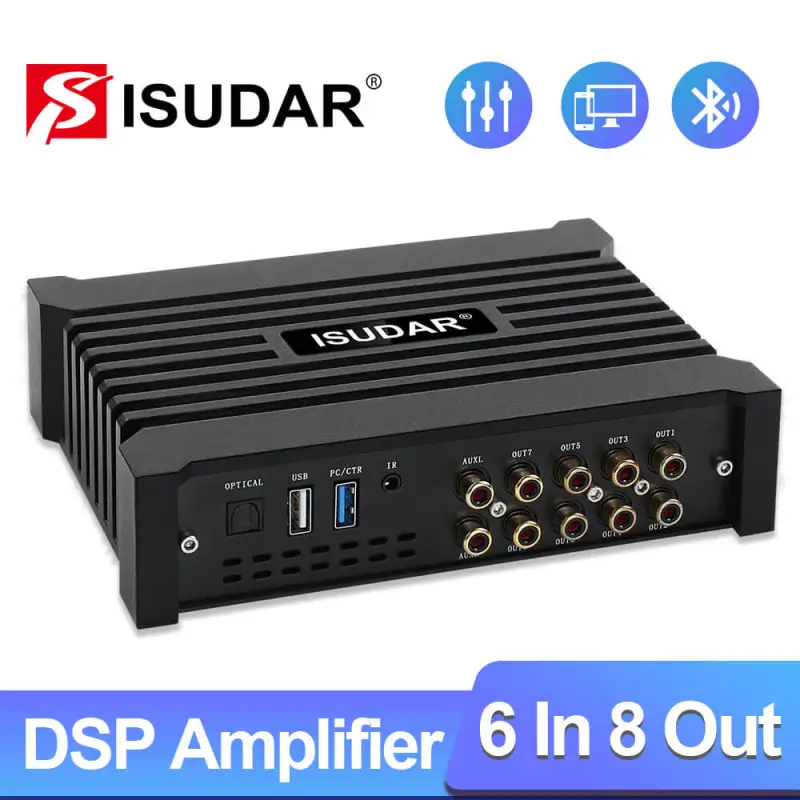

Input & Output Detail
A variety of input and output interfaces, bring more and more fun music experience

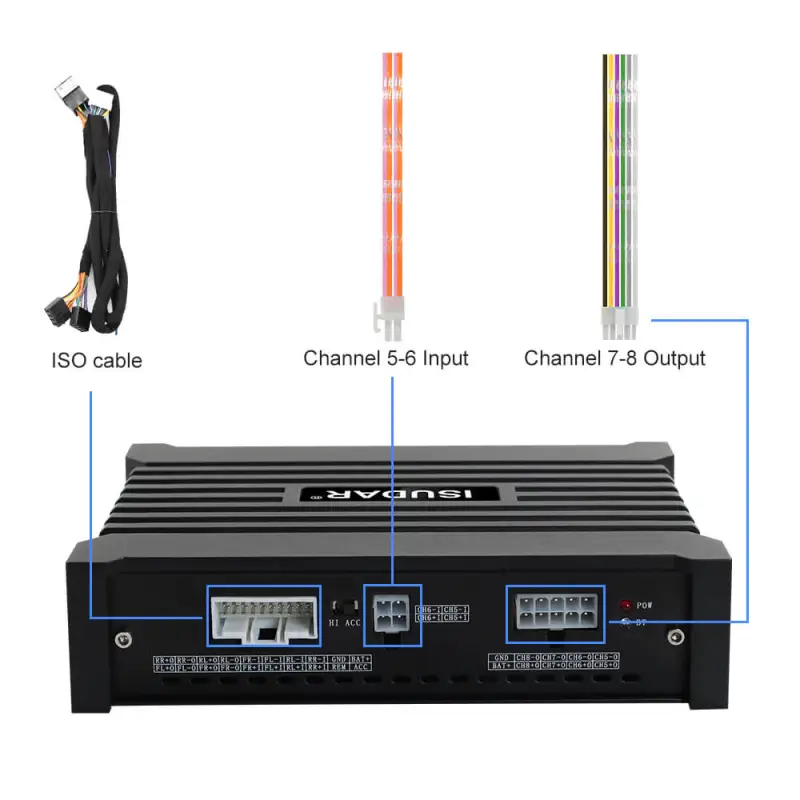

Accessories Details
When you order, please let us know your car model, and choose the correct cable which fits for your car.
ISO cable*1（Optional）
Channel 5-8 connector*1
USB data cable*1
